H tronic water protection switch WSS1

Product description

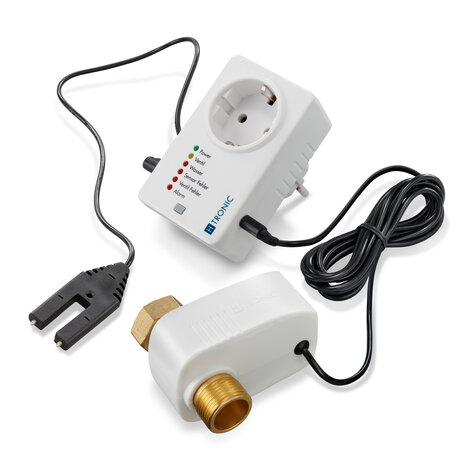

The WSS 1 water protection switch discovers leaks, alerts the user acoustically and visually and switches off the power and water supply.

Applications

Possible areas of application are:

Specifications

• Ambient temperature: 0 ... +50 °C
• Relative humidity: < 80
• WSS 1 dimensions: 98 x 60 x 41 mm
• WSS 1V dimensions: 84 x 54 x 40 mm
• Water sensor dimensions: 75 x 30 x 8 mm
• Weight WSS 1/WSS 1V/water sensor: 157/315/56 g
• Operating voltage: 230 V AC
• Power consumption: approx. 5.0 W
• Standby power consumption: approx. 0.5 W
• Switching power (ohmic load): max. 3680 W
• Trip sensitivity: ≈ 100 kOhm
• Protection class: IP20
• Water sensor connection: 3.5 mm
• Solenoid valve connection: 2.5 mm
• Alarm volume: approx. 80 dB
• Water connection: G3/4
• Cable length: approx. 2 m
