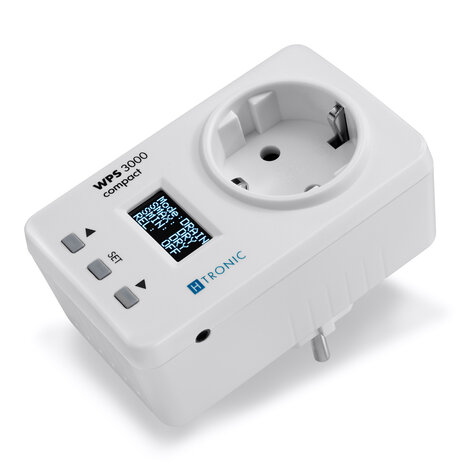

The compact WPS3000 water level switch monitors the level of conductive liquids and combines several functions in one compact device.

Product number

VN2000001

Default delivery time

1 business day (ordered before 9:30am)

€ 89,50
excl. VAT
€ 108,30
incl. VAT
Quantity:
Order


Product description

The water level switch detects changes in the level of conductive liquids, such as water, in a liquid container by means of enclosed water sensors. The level switch controls 230 V AC devices connected via a relay, such as a pump or solenoid valve.
The water level switch offers the following benefits:
  • Automated water level monitoring and control.
  • Any selectable switching point thanks to adjustable position of the water sensors,
  • Suitable for liquid containers made of concrete, plastic or metal
  • No mains voltage on the water sensors.

Applications

The water level switch WPS3000 compact monitors the levels of conductive liquids and combines several functions in one compact device:
- Filling or draining reservoirs.
- Maintaining the liquid level between two water sensors.
- Detecting leaking liquids.
- Switch connected 230 V AC devices e.g. pumps or valves.

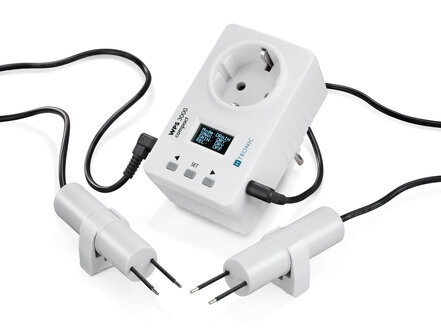

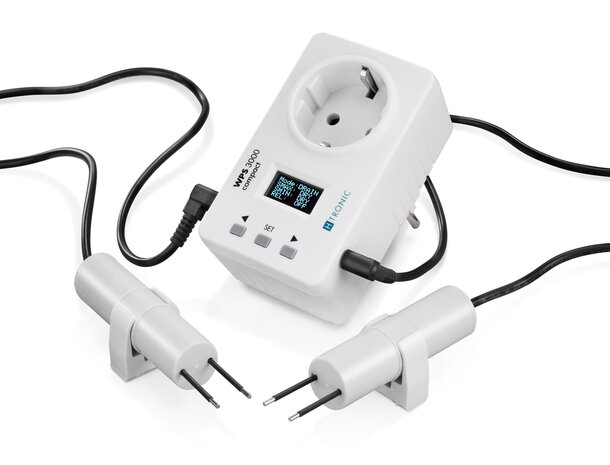

Scope of delivery
- Water level switch

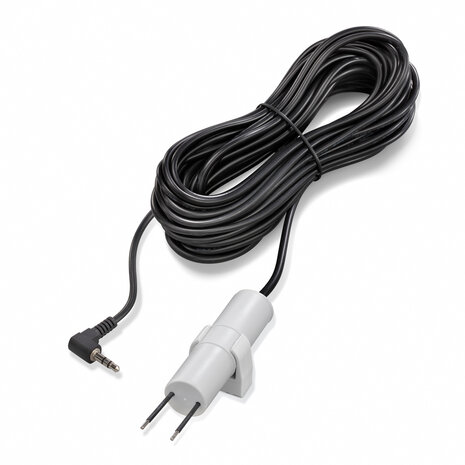

- 2 water sensors with connection cables and wall mounting

Specifications

  • Operating voltage: 230 V AC
  • Power consumption: 2 W
  • Max. switching power (ohmic load): 2300 W
  • Ambient temperature: 0 ... +50 °C
  • WPS3000 compact dimensions: 100 x 60 x 41 mm
  • Water sensor dimensions: 98 x Ø 20 mm
  • Weight WPS3000 compact/water sensor: 221/211 g
  • Total weight: 643 g
  • Protection class: IP20
  • Cable length water sensor: 10 m each
